Product Details:
Payment & Shipping Terms:
|
| SINGLE WIRE BENDING: | 6-16 Mm | DOUBLE WIRE BENDING: | 6-12 Mm |
|---|---|---|---|
| MAX. LENGTH OF STIRRUP SIDE: | 1000 Mm | MIN. LENGTH OF STIRRUP SIDE: | 90 Mm |
| BENDING DIRECTION: | Bi-direction | LENGTH ACCURACY: | ±1mm |
| L×W×H: | 9800×1000×1900 Mm | MAX. LENGTH OF HOOL SIDE: | 9m |
| High Light: | 9m automatic rebar stirrup bending machine,CNC Hook Bender Machine,9m Hook Bender Machine |
||

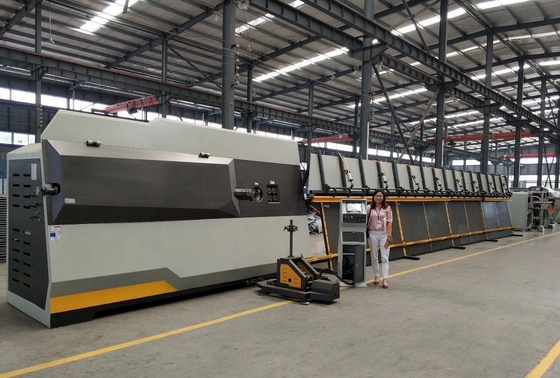

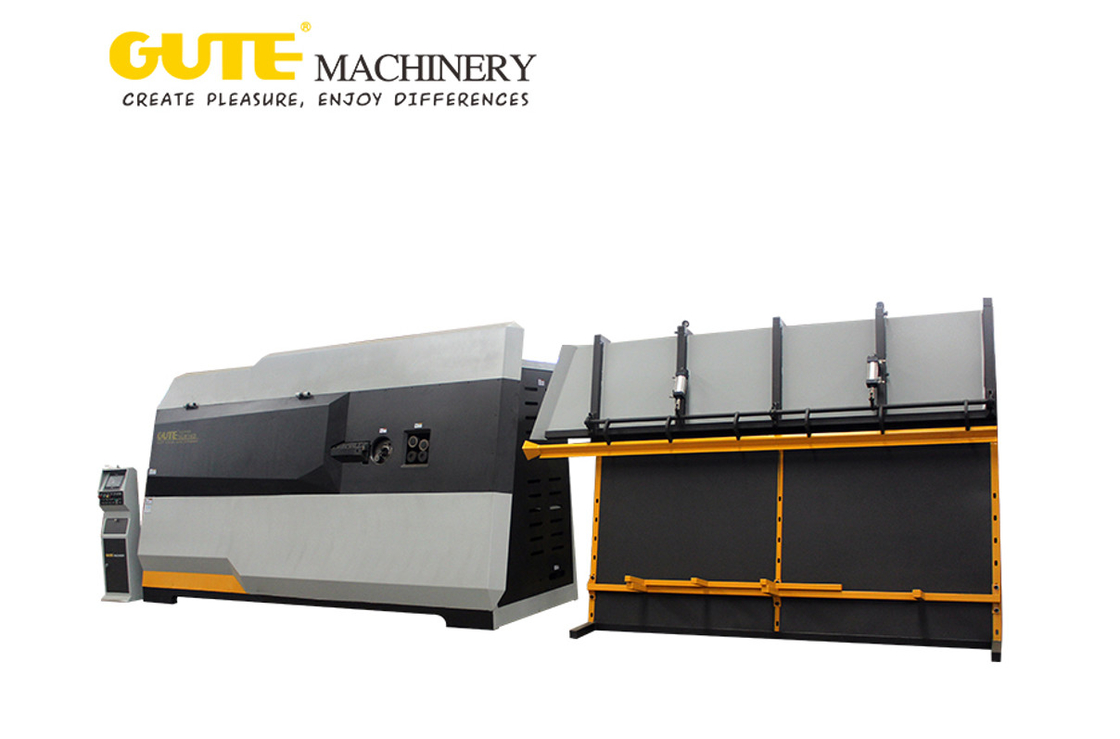

Overview Scope of application Mainly used in the construction of housing construction, highways, roads and bridges, subways and other projects. Device parameters 100 m/min 1050°/sec Equipment advantages Our factory Our service Certification
1. With the capacity of making stirrups from 6-16mm reinforced coil wires as well as 12-16mm straight wires

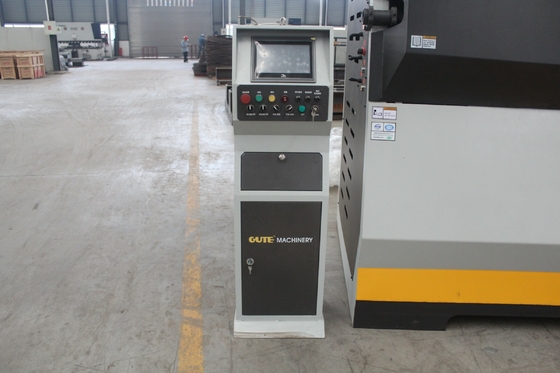

2. Siemens PLC control and customized system, stable flow.
3. 1600 stirrups production per for hour and each batch can be yield up to 8tons..
4. The electric components are of famous brands such as Schneider and Chint the power is provided by servo motor, with high efficiency and accuracy Support multi - language interactive interface, simple operation.
Single wire bending diameter
6–16mm
Rebar double wire bending diameter
6–12mm
Processing material
Steel Coil
Maximum towing speed
Maximum bending speed
Rib straightness error
0.02/1m
Total power
65KW
Power consumption
10KW/H
Stirrup length accuracy
±1mm
Rib length accuracy
±5mm
Angle accuracy
±1°
Maximum bending angle
±180°
Longest stirrup side
1000mm
Shortest stirrup side
90mm
The longest length of the rib
7m
Working temperature
-5~40 ℃
Total Weight
5.5T
