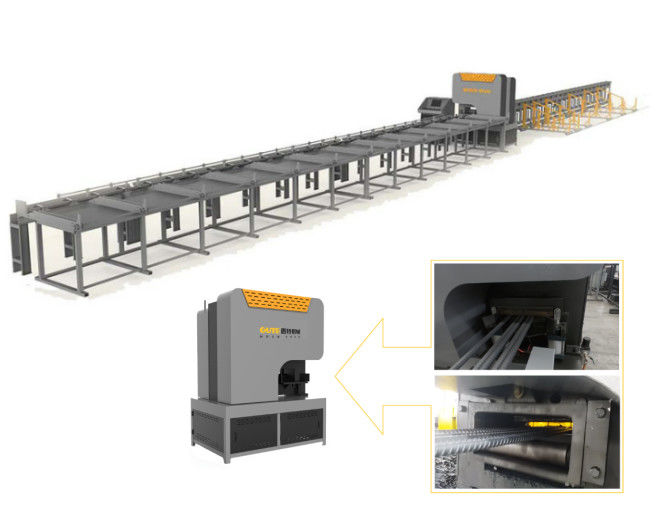

CNC PLC Control Automatic Rebar Shear Line 22n/Min Shear Line Cutting Machines

Introduce:

• PLC control shearing precision, high precision of finished steel bar, suitable for shearing processing of steel bar with many specifications and small batches.
• The machine has 24 fixed length plates, all of them are steel plate structure, with fixed length servo motor, the fixed length is fast and accurate.
• Large length blade and inclined blade design are adopted to ensure that multiple reinforcing bars can be cut at the same time.
• Equipped with centralized oil supply system to ensure long life operation.
• Level 3 product storage mechanism facilitates the collection of multiple products.
• Thickened and widened gears, stable and efficient cutting, fully encapsulated shield, effectively enhance safety.
• The positioning screw adopts high strength spiral elevator, which is not easy to deform and has high positioning accuracy.
• The cutting length can be set arbitrarily and work continuously. The speed block can be conveyed, and the cutting accuracy of fixed length is high.
• Chains have keys as guide ways, and chains and guide ways are rolling friction. They have small wear and tear, long service life and high transmission efficiency.

1. The overall design of the feeding rack and the feeding rack has a more stable structure, the feeding position is fixed, and there is no displacement and deformation;
2. The unilateral increase of the feeding trough prevents the steel bar from rolling out during feeding, which is safer;
3. The key bar under the transmission chain acts as a guide rail to guide and reduce friction and increase the service life of the chain;
4. There is a pre-feed mechanism to make the two steel bars discharge in unison, increasing the service life of the chain; and there is a pre-feed mechanism to make the two steel bars discharge continuously. Processing efficiency.

• Mechanical shearing mode, thicker and wider gears, stable and efficient cutting, fully encapsulated shield, effectively enhance safety;
• The use of inclined blade design, to ensure the simultaneous shearing of multiple steel bars, strong shearing capacity.

• Fixed-length plate and cylinder are connected by pin to ensure working sensitivity; one fixed-length plate and one cylinder can turn over material faster and set length faster;
• The fixed-length frame moving guide rail adopts the whole solid square steel, which is more stable; there are keys under the transmission chain as guide rail, which can guide and reduce friction and improve the service life of the chain;
• The positioning screw rod uses a high-strength spiral elevator and is not easy to start.
• The feeding drum is installed on the top of channel steel, which is easy to disassemble and assemble, and easy to maintain.

• pneumatic components adopt famous brand Airtac of Taiwan , ensure the service life
• Split thickening blade design, thickness up to 40mm, easy to use for many times
