GUTE Double Head 18KW CNC Stirrup Bender

Brand Name: GUTE
Model Number: LSW-32B
MOQ: 1set
Price: 21000-28000USD/SET
Packaging Details: plywood case
Payment Terms: L/C, T/T, D/P, D/A
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ISO 9001:2000
Model:
LSW-32B
Gas Source Wor:
0.8MPa
Maximum Bending Angle:
-120°~180°
Longest Stirrup:
10m
Minimum Margin Spacing:
390mm
Head Movement Speed:
0.1-1m/sec
L*W*H:
12m×2m×1.5m
Voltage:
380V/420V/440V
Supply Ability:
200set/month
Highlight:

Double Head 18KW cnc stirrup bender

,

GUTE cnc stirrup bender

,

GUTE Automatic Rebar Bending machine

Product Description

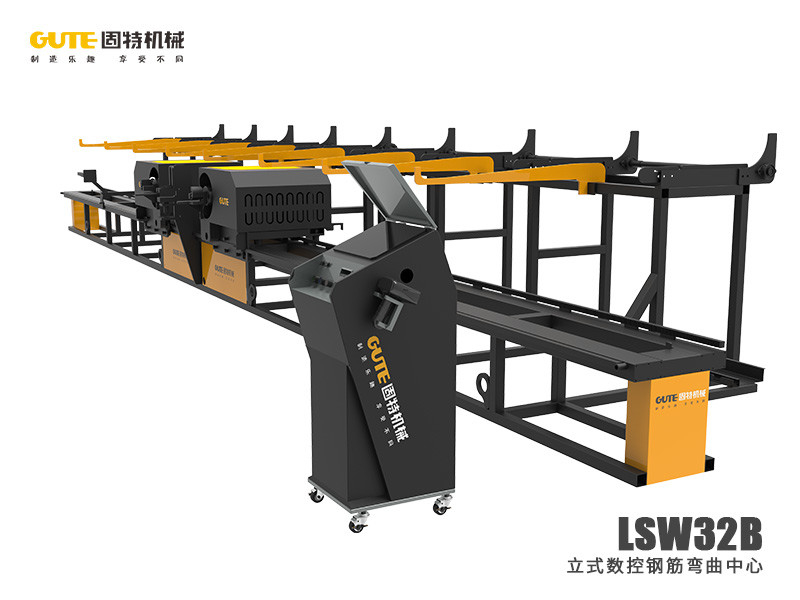

32m Double Head Cnc Automatic Rebar Bending machine

32m Double Head CNC Automatic Rebar Bending Machine

01


Overview

The vertical CNC steel bar bending center can be used in the construction of high-speed, road and bridge, housing construction, subway and other projects. The raw material is 10-32mm bar. Can process a variety of graphics, using PLC control. The machining accuracy can be controlled within ±2mm, and the intelligent numerical control operation reduces labor intensity and labor cost. It can store 100 shapes and can be called during processing. The innovative fixture design makes it more convenient to bend horseshoe bars.

02


Device parameters

rated power 18KW
Air source working pressure 0.8MPa
Maximum bending angle -120°至180°
Maximum bending length 10m
Minimum curved edge spacing 390mm
Moving speed of machine head 0.5-1m/sec
Fastest bending speed 72°/sec
total weight 4t
Average power consumption 5KW/H
L*W*H 12m×2m×1.5m
Diameter 10 12 14 16 20 22 25 28 32
Quantity 7 6 5 4 3 2 1 1 1 ±≤90°
Movement Control Servo
Bending Control Servo
Power source pneumatic
03


Equipment advantages

GUTE Double Head 18KW CNC Stirrup Bender 0

The all-steel welded box body is strong, durable, and will not deform for life.

GUTE Double Head 18KW CNC Stirrup Bender 1

Using rack drive to ensure accurate product size.

GUTE Double Head 18KW CNC Stirrup Bender 2

The bending and walking are all controlled by servo motors, the bending angle is accurate, and the forming size is accurate.








Finished product

GUTE Double Head 18KW CNC Stirrup Bender 3

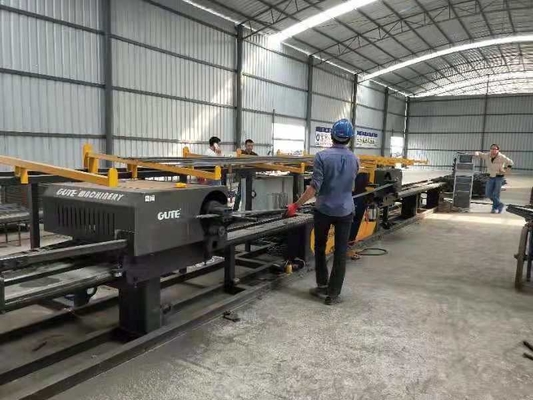

Case

GUTE Double Head 18KW CNC Stirrup Bender 4








Our factory

GUTE Double Head 18KW CNC Stirrup Bender 5

GUTE Double Head 18KW CNC Stirrup Bender 6








Our service

GUTE Double Head 18KW CNC Stirrup Bender 8










Certification

GUTE Double Head 18KW CNC Stirrup Bender 9



















Tags:

18mm CNC Rebar Bending Machine

32mm CNC Rebar Bending Machine

LSW32 CNC bar bending Servo Control
