| Model: | LSW40 | Rated Power: | 20KW |
|---|---|---|---|
| Gas Source Wor: | 0.8MPa | Maximum Bending Angle: | -120°~180° |
| Longest Stirrup: | 10.8m | Minimum Margin Spacing: | 520mm |
| Head Movement Speed: | 0.5-1m/sec | Fastest Bending Speed: | 70°/sec |
| L*W*H: | 12m×2m×1.7m | Max Bending: | 40mm |
| Highlight: | pneumatic CNC Rebar Bending Machine,pneumatic CNC rebar bender,Double Head CNC rebar bender |
||

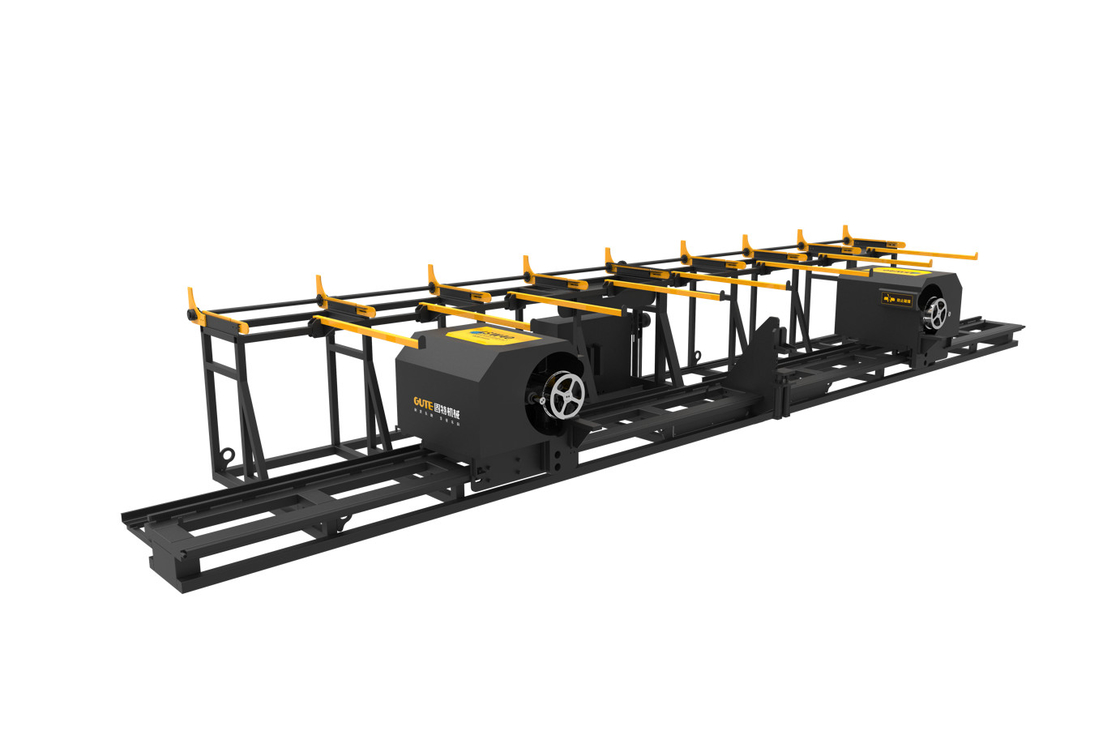

Overview LSW40 vertical CNC steel bar bending center is a device designed for large steel bars. In addition to the characteristics of the bending center, it is equipped with different pile heads and pile head sleeves, which is easy to disassemble and assemble. It can complete the bending of the large R arc of the steel bar at one time. The diameter of the arc can be adjusted arbitrarily within the allowable range; the equipment has complete functions, which greatly improves the efficiency and use range of steel bar processing. The equipment adopts PLC and servo drive control system to ensure the control performance and control accuracy of the whole machine, large-scale and efficient production, and meet user needs. Device parameters Equipment advantages Case Our factory Our service Certification
rated power
20KW
Air source working pressure
0.8MPa
Maximum bending angle
-120°至180°
Maximum bending
10.8m
Minimum curved edge spacing
520mm
Moving speed of machine head
0.5-1m/sec
Fastest bending speed
70°/sec
total weight
4.9t
Average power consumption
5KW/H
L*W*H
12m×2m×1.7m
Diameter
10
12
14
16
20
25
28
36
40
Quantity
8
6
5
5
3
2
2
1
1
±≤90°
Movement Control
Servo
Bending Control
Servo
Power source
pneumatic
