Name: 16mm CNC Rebar Hoop Wire Bender
Brand: Chengdu Gute Machinery Works Co., Ltd.
SKU: SGW16D
Price: 67,500.00 USD
Availability: InStock

Brand Name:	GUTE
Model Number:	SGW16D
MOQ:	1set
Price:	65000-70000USD/SET
Packaging Details:	plywood case
Payment Terms:	L/C, T/T, D/P, D/A

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO 9001:2000

MODEL:

SGW16D

OPERATION:

Automatic Wire Feeding System(CNC)

SINGLE WIRE BENDING:

6-16 Mm

DOUBLE WIRE BENDING:

6-12 Mm

BENDING DIRECTION:

Bi-direction

LENGTH ACCURACY:

±1mm

L×W×H:

9800×1000×1900 Mm

WEIGHT:

5.5T

Supply Ability:

200set/month

Highlight:

CNC Steel Bar Stirrup Bending And Cutting Machine

16mm Rebar Hoop Wire Bender

CNC Rebar Hoop Wire Bender

Product Description

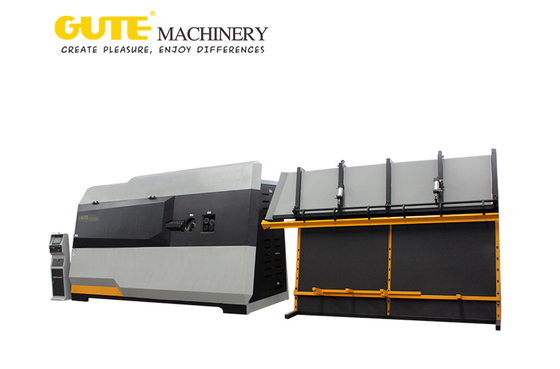

16mm Cnc Steel Bar Stirrup Bending And Cutting Machine Rebar Hoop Wire Bender

Overview

1. The electric components are of famous brands such as Schneider the power is provided by servo motor, with high efficiency and accuracy Support multi - language interactive interface, simple operation.
2. Automatic wire feeding system which is easy for operators use Siemens PLC
3. Optional automatic collector and level 3 storage bin.
4. 1 years free warranty service..

Finished products

16mm CNC Rebar Hoop Wire Bender 0

Device parameters

Single wire bending diameter	6–16mm
Rebar double wire bending diameter	6–12mm
Processing material	Steel Coil
Maximum towing speed	100 m/min
Total power	65KW
Power consumption	10KW/H
Stirrup length accuracy	±1mm
Rib length accuracy	±5mm
Angle accuracy	±1°
Maximum bending angle	±180°
Longest stirrup side	1000mm
Shortest stirrup side	90mm
The longest length of the rib	9m
Working temperature	-5~40 ℃
Traction control method	Servo
Bend control method	Servo
Loopback control method	Servo

Equipment advantages

16mm CNC Rebar Hoop Wire Bender 1

Automatic to pick up the Straight bar
Max. to straight 9m or customized

16mm CNC Rebar Hoop Wire Bender 2

Straightening wheel for forging alloy tool steel manufacturing, wear resistance, impact resistance..
Preset wheel plate: the overall use of 30mm thick steel plate, high strength, strong impact load, very durable.

16mm CNC Rebar Hoop Wire Bender 3

The adoption of multi-split type blade which ensures a double lifetime co-mpared with normal one piece blade

16mm CNC Rebar Hoop Wire Bender 4

The touch screen console can store hundreds of graphics and is easy to operate.

Our factory

16mm CNC Rebar Hoop Wire Bender 5

16mm CNC Rebar Hoop Wire Bender 6

Our service

16mm CNC Rebar Hoop Wire Bender 8

Certification

16mm CNC Rebar Hoop Wire Bender 9
