Name: Siemens Stirrup Hook Bending Machine PLC Control
Brand: Chengdu Gute Machinery Works Co., Ltd.
SKU: SGW16D
Price: 81,000.00 USD
Availability: InStock

Brand Name:	GUTE
Model Number:	SGW16D
MOQ:	1set
Price:	72000-90000USD/SET
Packaging Details:	plywood case
Payment Terms:	L/C, T/T, D/P, D/A

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO 9001:2000

MODEL:

SGW16D

OPERATION:

Automatic Wire Feeding System(CNC)

SINGLE WIRE BENDING:

6-16 Mm

DOUBLE WIRE BENDING:

6-12 Mm

MAX. LENGTH OF STIRRUP SIDE:

1000 Mm

MIN. LENGTH OF STIRRUP SIDE:

90 Mm

LENGTH ACCURACY:

±1mm

L×W×H:

9800×1000×1900 Mm

Supply Ability:

200set/month

Highlight:

Stirrup Hook Bending Machine PLC Control

Siemens Stirrup Hook Bending Machine

PLC Control Steel Bar Bending Machine

Product Description

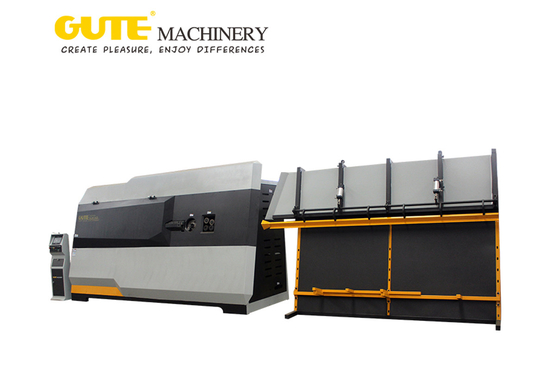

Siemens PLC Control 16mm Cnc Automatic Steel Bar Stirrup Hook Bending Machine

Overview

1. With the capacity of making stirrups from 6-16mm reinforced coil wires as well as 12-16mm straight wires

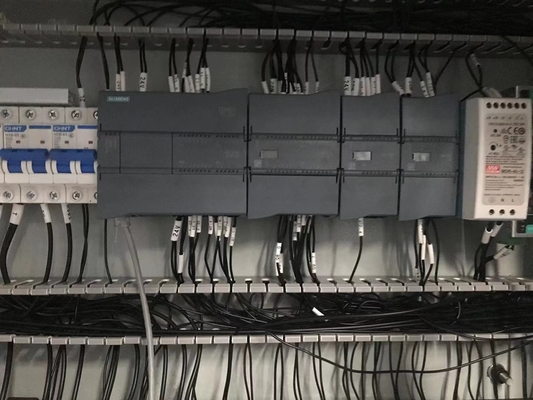

2. Siemens PLC control and customized system, stable flow
3. Multi-feeding bacj system ensures various processing shapes available.

Scope of application

Mainly used in the construction of housing construction, highways, roads and bridges, subways and other projects.

Device parameters

Single wire bending diameter	6–16mm
Rebar double wire bending diameter	6–12mm
Processing material	Steel Coil
Maximum towing speed	100 m/min
Maximum bending speed	1050°/sec
Rib straightness error	0.02/1m
Total power	65KW
Power consumption	10KW/H
Stirrup length accuracy	±1mm
Rib length accuracy	±5mm
Maximum bending angle	±180°
Longest stirrup side	1000mm
Shortest stirrup side	90mm
The longest length of the rib	9m
Traction control method	Servo
Bend control method	Servo
Loopback control method	Servo
Total Weight	5.5T

Equipment advantages

Siemens Stirrup Hook Bending Machine PLC Control 0

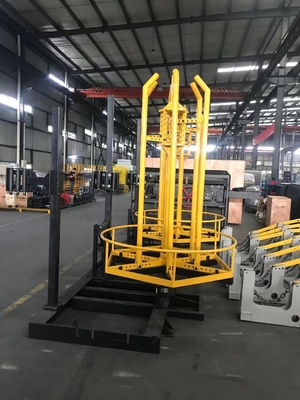

Automatic to pick up the Straight bar
Max. to straight 9m or customized

Siemens Stirrup Hook Bending Machine PLC Control 1

Straightening wheel for forging alloy tool steel manufacturing, wear resistance, impact resistance..
Preset wheel plate: the overall use of 30mm thick steel plate, high strength, strong impact load, very durable.

Siemens Stirrup Hook Bending Machine PLC Control 2

The adoption of multi-split type blade which ensures a double lifetime co-mpared with normal one piece blade

Siemens Stirrup Hook Bending Machine PLC Control 3

The touch screen console can store hundreds of graphics and is easy to operate.

Our factory

Siemens Stirrup Hook Bending Machine PLC Control 4

Siemens Stirrup Hook Bending Machine PLC Control 5

Our service

Siemens Stirrup Hook Bending Machine PLC Control 7

Certification

Siemens Stirrup Hook Bending Machine PLC Control 8
