Automatic Stirrup Bending Machine
>

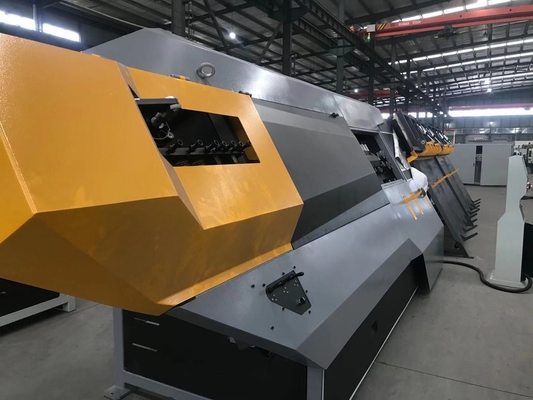

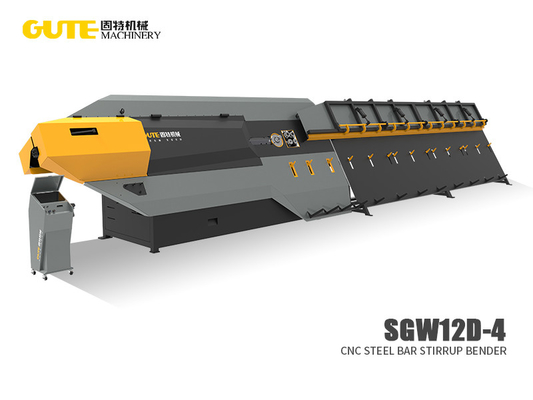

100m/Min Rebar Automatic Stirrup Bending Machine

100m/Min Rebar Automatic Stirrup Bending Machine

Brand Name: GUTE
Model Number: SGW12D-4
MOQ: 1set
Price: 28000-36000USD/SET
Packaging Details: plywood case
Payment Terms: L/C, T/T, D/P, D/A
Detail Information
Place of Origin:
CHINA
Certification:
CE,ISO 9001:2000
MODEL:
SGW12D-4
OPERATION:
Automatic Wire Feeding System(CNC)
SINGLE WIRE BENDING:
5-13 Mm
DOUBLE WIRE BENDING:
5-10 Mm
MAX. LENGTH OF STIRRUP SIDE:
1000 Mm
MIN. LENGTH OF STIRRUP SIDE:
90 Mm
CUTTING MOTOR POWER:
4 KW
TOTAL POWER:
46KW
LENGTH ACCURACY:
±1mm
ANGLE ACCURACY:
±1°
L×W×H:
11700×1900×2110 Mm
WEIGHT:
5.7T
Supply Ability:
200set/month
Highlight:

100m/min Automatic Stirrup Bending Machine

,

stirrup rebar bending machine Servo control

,

100m/min stirrup rebar bending machine

Product Description
Full Power Cnc Steel Bar Stirrup Bending Machine 6m Long Hook Bender And Cutter
01


Overview

It can be bent in two directions and in two lines, and the processing capacity is very comprehensive. At the same time, the return mechanism and the material rack can be used to complete the production of hook ribs and plate ribs, realizing multiple uses in one machine. The equipment uses a numerical control system, and controls the servo system through a touch screen and PLC. The finished stirrup has high processing accuracy, stable and reliable quality, and has strong graphic storage capabilities. It is simple to operate and convenient to set up, which can save a lot of labor and waste. Improving processing efficiency is an indispensable part of modern construction buildings, and it is also an intelligent equipment that meets national standards.



02


Scope of application

Mainly used in the construction of housing construction, highways, roads and bridges, subways and other projects

03


Device parameters

Single wire bending diameter 5–13mm
Rebar double wire bending diameter 5–10mm
Processing material Steel Coil
Maximum towing speed

100 m/min

Maximum bending speed

1050°/sec

Rib straightness error 0.02/1m
Total power 48KW
Power consumption 7KW/H
Stirrup length accuracy ±1mm
Rib length accuracy ±5mm
Angle accuracy ±1°
Maximum bending angle ±180°
Longest stirrup side 1000mm
Shortest stirrup side 90mm
The longest length of the rib 7m
Working temperature -5~40 ℃
Traction control method Servo
Bend control method Servo
Loopback control method Servo
Total Weight 5.7T
04


Equipment advantages

100m/Min Rebar Automatic Stirrup Bending Machine 0

  • The pre-traction structure adds a feeding motor to make feeding easier

100m/Min Rebar Automatic Stirrup Bending Machine 1



  • Straightening wheel for forging alloy tool steel manufacturing, wear resistance, impact resistance.
  • Preset wheel plate: the overall use of 30mm thick steel plate, high strength, strong impact load, very durable.
  • Each wheel has a power system for better straightening

100m/Min Rebar Automatic Stirrup Bending Machine 2



  • The adoption of multi-split type blade which ensures a double lifetime co-mpared with normal one piece blade



100m/Min Rebar Automatic Stirrup Bending Machine 3

  • The touch screen console can store hundreds of graphics and is easy to operate.







Our factory

100m/Min Rebar Automatic Stirrup Bending Machine 4

100m/Min Rebar Automatic Stirrup Bending Machine 5








Our service

100m/Min Rebar Automatic Stirrup Bending Machine 7










Certification

100m/Min Rebar Automatic Stirrup Bending Machine 8
