440V 380V 220V Double Wire Coil Bender

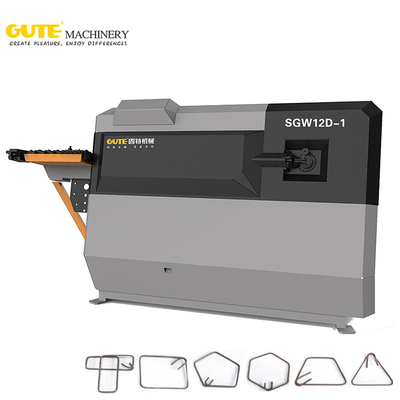

Gute fully automatic CNC hoop bending machine can be used for one-time forming of stirrups, hooks, and special-shaped parts. It can automatically complete the straightening, sizing, bending, cutting and counting functions of rebar and round steel. The equipment uses a numerical control system, and controls the servo system through a touch screen and PLC. The finished stirrup has high processing accuracy, stable and reliable quality, and has strong graphic storage capabilities. It is simple to operate and convenient to set up. It can save a lot of labor and waste.It is also an intelligent equipment that meets international standards.

Mainly used in the construction of housing construction, highways, roads and bridges, subways and other projects

The raw material pre-aligning mechanism is composed of 14 straightening wheels. The spacing of each straightening wheel can be adjusted and controlled by bolts. The straightening wheel has double grooves and can be double-line straightened. At the same time, the straightening wheel is made of forging alloy tool steel. , Wear resistance and impact resistance.

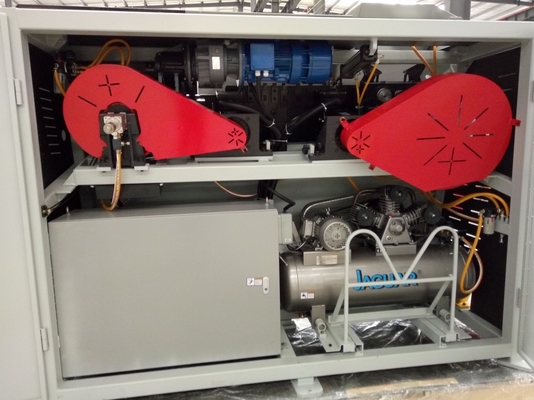

Equipped with 19KW high-power servo motor to ensure the smooth operation of the traction. The square-head transition connection is adopted, and the strength is 12 times that of the traditional flat key connection. The traction wheel is made of forged alloy tool steel, which is resistant to wear and impact.

The split thick blade design is bolted to the blade seat, and the thickness reaches 40mm. It is quick to replace and easy to maintain, which greatly reduces the maintenance cost of the equipment.

The touch screen console can store hundreds of graphics and is easy to operate.
