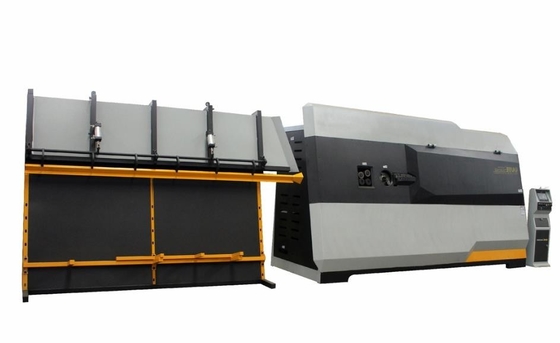

Name: 90mm To 1000mm Rebar CNC Stirrup Bending Machine ISO9001 For Building
Brand: Chengdu Gute Machinery Works Co., Ltd.
SKU: SGW16D
Price: 67,500.00 USD
Availability: InStock

Brand Name:	GUTE
Model Number:	SGW16D
MOQ:	1set
Price:	65000-70000USD/SET
Packaging Details:	plywood case
Payment Terms:	L/C, T/T, D/P, D/A

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO 9001:2000

Name:

CNC Stirrup Rebar Bending Machine

SINGLE WIRE BENDING:

6-16 Mm

MAX. LENGTH OF STIRRUP SIDE:

1000 Mm

MIN. LENGTH OF STIRRUP SIDE:

90 Mm

BENDING DIRECTION:

Bi-direction

LENGTH ACCURACY:

±1mm

ANGLE ACCURACY:

±1°

L×W×H:

980×100×190cm

WEIGHT:

5.5T

Application:

Building And Road Construction

Supply Ability:

200set/month

Highlight:

90mm stirrup rebar bending machine

stirrup bending machine ISO9001

1000mm CNC stirrup bending machine

Product Description

Double Wire 13mm Cnc Steel Bar Stirrup Bending Machine Rebar Wire Bender

Overview

1. With the capacity of making stirrups from 6-16mm reinforced coil wires as well as 6-16mm straight wires
2. Straightening wheel made of alloy steel service life is longer.

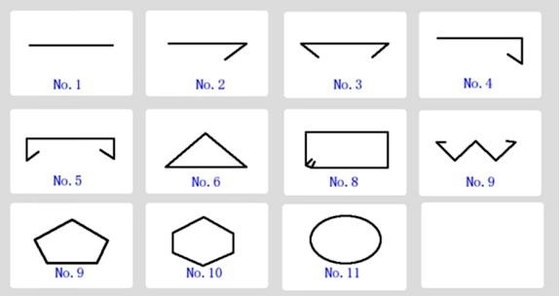

3. Multi-feeding bacj system ensures various processing shape available.
4. IKO bearings imported from Japan are used in key parts to ensure service life.

Scope of application

The equipment is widely used in the construction of highways, subways, municipal projects, office buildings, residential buildings and other buildings.

Device parameters

Single wire bending diameter	6–16mm
Rebar double wire bending diameter	6–12mm
Maximum towing speed	100 m/min
Maximum bending speed	1050°/sec
Total power	65KW
Power consumption	10KW/H
Stirrup length accuracy	±1mm
Rib length accuracy	±5mm
Angle accuracy	±1°
Maximum bending angle	±180°
Longest stirrup side	1000mm
Shortest stirrup side	90mm
The longest length of the rib	7m
Traction control method	Servo
Bend control method	Servo
Loopback control method	Servo
Total Weight	5.5T

Equipment advantages

90mm To 1000mm Rebar CNC Stirrup Bending Machine ISO9001 For Building 0

Automatic to pick up the Straight bar
Max. to straight 9m or customized

90mm To 1000mm Rebar CNC Stirrup Bending Machine ISO9001 For Building 1

Straightening wheel for forging alloy tool steel manufacturing, wear resistance, impact resistance..
Preset wheel plate: the overall use of 30mm thick steel plate, high strength, strong impact load, very durable.

90mm To 1000mm Rebar CNC Stirrup Bending Machine ISO9001 For Building 2

The adoption of multi-split type blade which ensures a double lifetime co-mpared with normal one piece blade

90mm To 1000mm Rebar CNC Stirrup Bending Machine ISO9001 For Building 3

The touch screen console can store hundreds of graphics and is easy to operate.

Our factory

90mm To 1000mm Rebar CNC Stirrup Bending Machine ISO9001 For Building 4

90mm To 1000mm Rebar CNC Stirrup Bending Machine ISO9001 For Building 5

Our service

90mm To 1000mm Rebar CNC Stirrup Bending Machine ISO9001 For Building 7

Certification

90mm To 1000mm Rebar CNC Stirrup Bending Machine ISO9001 For Building 8
