Product Details:
Payment & Shipping Terms:
|
| BRAND: | GUTE | PLACE OF ORIGIN: | CHINA |
|---|---|---|---|
| CUTTING CAPACITY: | 5-12 Mm (ob ≤450N/mm2) | STRAIGHTENING MOTOR: | YB2M4-4 |
| STRAIGHT-CUT MOTOR POWER: | 7.5 KW-4P | PULLING SPEED: | 38m/min |
| WEIGHT: | 248 Kg. + 15 Kg. | DIMENSIONS (L*W*H): | 1300*530*830 Mm |
| High Light: | 38m/min Rebar Straightening And Cutting Machine,12mm Rebar Straightener Cutter,38m/min Rebar Straightener Cutter |
||

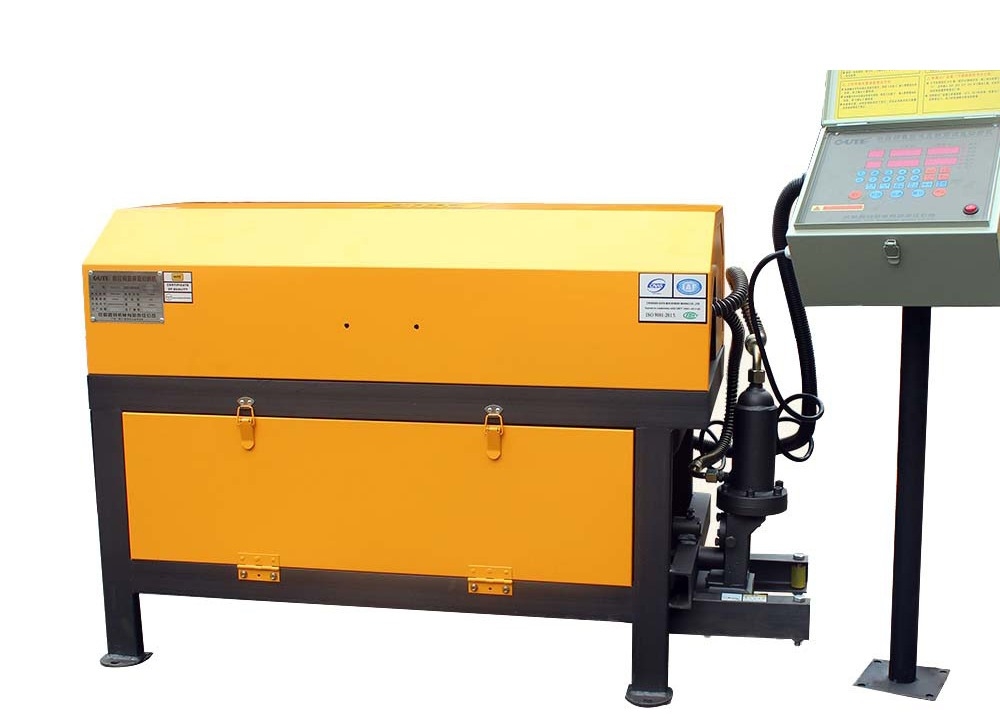

Automatic Rebar Straightening And Cutting Machine 12mm Rebar Straighten-Cutter
• SGT5-12 adopts digital controlling, hydraulic system with one-way cylinder automatic return and double motor.
• Control cabinet features the ENCODER for the straightening and cutting adjusting, it can memorize up to 20 batches of different length and number of pieces, DIGITAL CONTROL with setting displaying on the screen for faster and easier operations.
• One dust proof motors to control straightening part and hydraulic-cutting system for the lowest failure rate.
• 2mm thick fully-enclosed external case to prevent dust infiltration (especially into the hydraulic system) and for safer operations.
• STRAIGHTENING WHEELS, SQUARE BLADE and ROUND BLADE made of high-quality alloyed steel with proper heat treatment (quenching) to ensure high performances also under heavy loads and long working life.
| STEEL BAR STRAIGHT-CUTTER SGT5-12 | ||
| CUTTING CAPACITY | 5-12 mm (ob ≤450N/mm2) | 5-10 mm (ob ≤650N/mm2) |
| STRAIGHTENING MOTOR | YB2M4-4 | |
| STRAIGHT-CUT MOTOR POWER | 7.5 KW-4P | |
| PULLING SPEED | 38m/min | |
| NOISE VALUE (1m away) | ≤80dB(A) | |
| WEIGHT | 248 Kg. + 15 Kg. | |
| DIMENSIONS (L*W*H) | 1300*530*830 mm | |
| CERTIFICATION | ISO 9001:2008 | |
