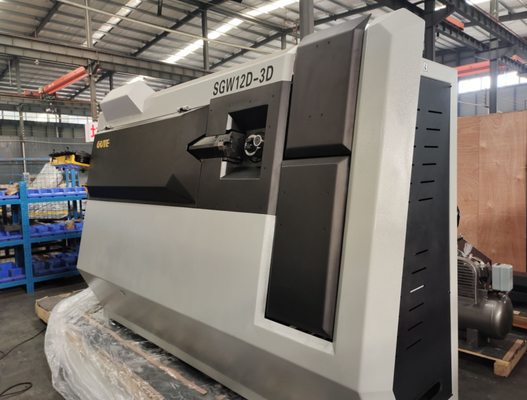

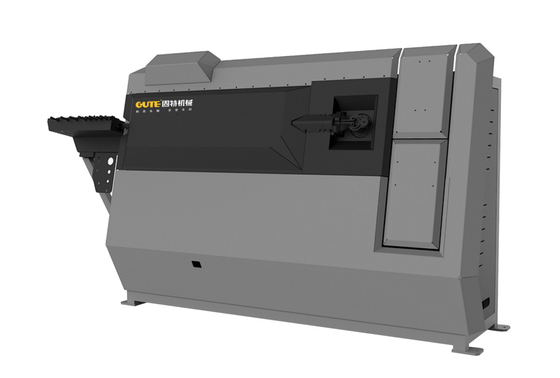

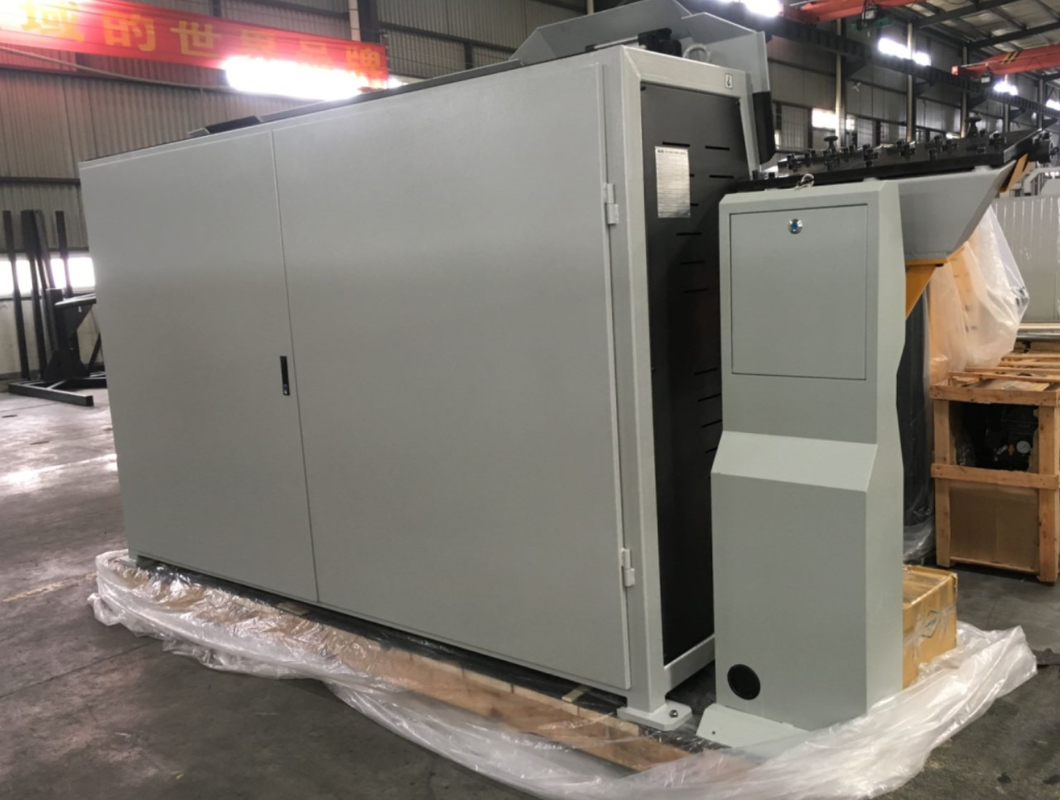

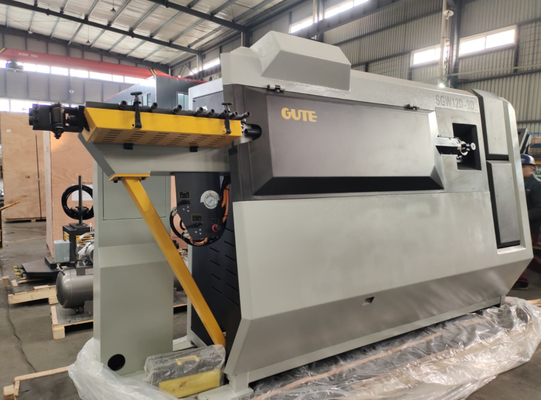

3D Shapes CNC Automatic Stirrup Bending Machine 12mm Rebar Bender 380V/440V

3D Shapes CNC Automatic Stirrup Bending Machine 12mm Rebar Bender 380V/440V
3D Shapes CNC Automatic Stirrup Bending Machine 12mm Rebar Bender 380V/440V 3D Shapes CNC Automatic Stirrup Bending Machine 12mm Rebar Bender 380V/440V 3D Shapes CNC Automatic Stirrup Bending Machine 12mm Rebar Bender 380V/440V 3D Shapes CNC Automatic Stirrup Bending Machine 12mm Rebar Bender 380V/440V

Large Image :  3D Shapes CNC Automatic Stirrup Bending Machine 12mm Rebar Bender 380V/440V

Product Details:
Place of Origin: CHINA
Brand Name: GUTE
Certification: CE,ISO 9001:2000
Model Number: SGW12D-3D
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 40000-50000USD/SET
Packaging Details: plywood case
Delivery Time: 20 work days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 200set/month
Contact Now
Detailed Product Description
MODEL: SGW12D-3D SINGLE WIRE BENDING: 5-12mm
DOUBLE WIRE BENDING: 5-10 Mm BENDING DIRECTION: Single-direction
WEIGHT: 3.5T TOTAL POWER: 33KW
VOLTAGE: 380V/440V/420V ORIGIN: CHINA
High Light:

3D Shape Automatic Stirrup Bending Machine

,

12mm rebar Bender machine

,

rebar Bender machine 380V/440V

3D CNC Steel Bar Stirrup Bending Machine 12mm Srebar Bender Constraction Use
01


Overview

  • This machine can process 3D shapes, horseshoes, stirrup, circles, hooks H-shaped steel, long straight bar and so on hundreds of shapes.
  • The electric components are of famous brands such as Schneider the power is provided by servo motor, with high efficiency and accuracy Support multi - language interactive interface, simple operation.
  • IKO bearings imported from Japan are used in key parts to ensure service life.
02


Finished products

3D Shapes CNC Automatic Stirrup Bending Machine 12mm Rebar Bender 380V/440V 0

03


Device parameters

Single wire bending diameter 5–12mm
Maximum bending speed

1050°/sec
Total power 33KW
Power consumption 5KW/H
Stirrup length accuracy ±1mm
Rib length accuracy ±5mm
Total Weight 3.5T
04


Equipment advantages



3D Shapes CNC Automatic Stirrup Bending Machine 12mm Rebar Bender 380V/440V 1



  • Equipped with 22KW high-power servo motor to ensure the smooth operation of tractio.



3D Shapes CNC Automatic Stirrup Bending Machine 12mm Rebar Bender 380V/440V 2

  • The adoption of multi-split type blade which ensures a double lifetime co-mpared with normal one piece blade



3D Shapes CNC Automatic Stirrup Bending Machine 12mm Rebar Bender 380V/440V 3

  • The touch screen console can store 500 hundreds of graphics and is easy to operate.







Our factory

3D Shapes CNC Automatic Stirrup Bending Machine 12mm Rebar Bender 380V/440V 4

3D Shapes CNC Automatic Stirrup Bending Machine 12mm Rebar Bender 380V/440V 5








Our service

3D Shapes CNC Automatic Stirrup Bending Machine 12mm Rebar Bender 380V/440V 7










Certification

3D Shapes CNC Automatic Stirrup Bending Machine 12mm Rebar Bender 380V/440V 8
